CPM10V Tongue
Product Overview
This product is a core wear part for the cigarette rod forming system on high-speed cigarette makers. Specificall
y designed for the tongue station on M5 and M8 models, it is manufactured from CPM10V powder metallurgy tool steel with precision forming technology, ensuring consistent and uniform rod formation while significantly extending replacement intervals.
Key Specifications
Parameter | Specification |
|---|---|
Applicable Machine | M5 / M8 high-speed cigarette maker |
Material & Process | CPM10V powder metallurgy steel, vacuum heat treated |
Service Life | 4,000 hours |
Hardness | HRC 60 – 62 |
Wear Resistance | 5x longer than conventional tool steel |
Compatible Rod Diameter | Standard 5.4mm – 8.0mm (customizable) |
Key Advantages
Extended Service Life – Up to 4,000 hours of continuous operation, reducing downtime and changeover frequency, significantly improving overall equipment efficiency (OEE).
Low Wear Rate – CPM10V offers excellent resistance to abrasive wear, maintaining precise tongue geometry over time for stable rod quality.
Reduced Maintenance – No mid‑shift replacement needed. Eliminates quality issues such as loose ends or irregular suction tape movement caused by tongue wear.
Direct Replacement – Fully interchangeable with original parts, requiring no machine modification. Installation takes less than 10 minutes.
Applications
Tobacco cigarette making lines (M5 / M8)
High‑speed filter rod making machines (custom tongue designs available)
Other high‑wear guiding / forming applications in web processing

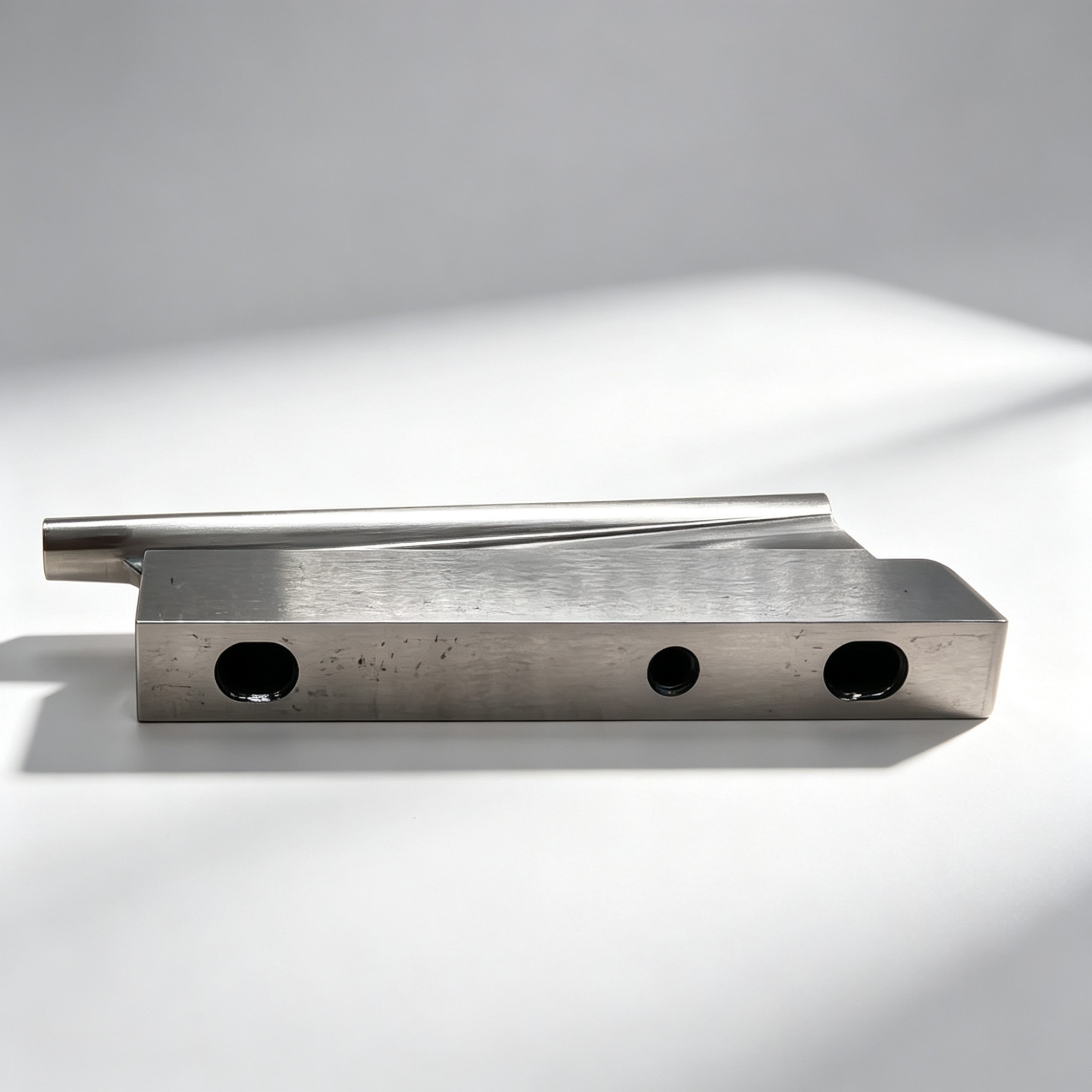

Product Structure
Tongue body (precision ground from CPM10V)
Mounting holes (high‑accuracy countersunk)
Superfinished working surface (reduces tobacco fiber friction)
Optional mounting screws and anti‑vibration washers
The tongue
No Downtime.
The only tongue for M5 / M8 that lasts 4,000 hours.
Made from CPM10V – high wear resistance, extreme
durability, and minimal downtime.
No more mid-shift replacements. No more wasted
labor.
If you run high-speed lines, this is your new standard.
One tongue. 4,000 hours. Your line keeps running.
